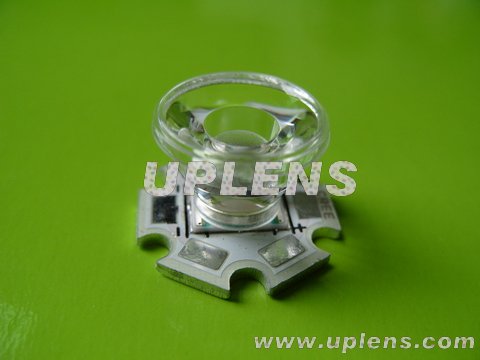

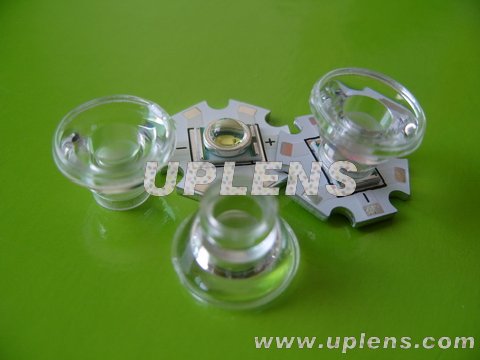

UP-V15.5-RU15
Angle:15°
Dimension:Ф15.5mm
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED series:Special for CREE
Characteristic:
1 The type especially against CREE LED lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 The type lens features the largest diameter is small, small size (thickness of thin Centre) but the messenger glorifies penetration rate being advanced further , the facula concentrates utilization ratio and transmitting rate height , glorifies very homogeneously
3 Without holder can be firmly fixed lens directly on CREE LED, CREE LED because of the very high flux, with the small lens, high-power LED lamps can be more compact design;
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS.
Application:
Widely used in small flashlight, projection lamps, washing wall lights, decorative landscape lights, desk lamps, bedside lamp, etc.
