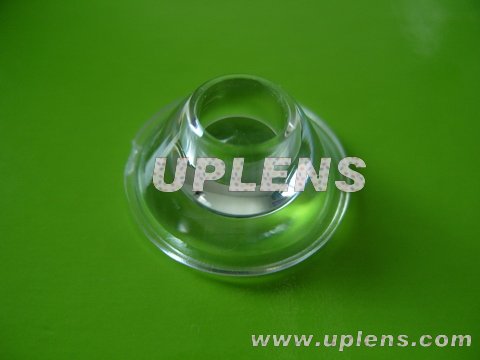

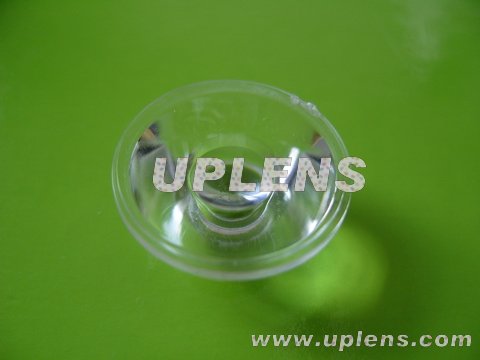

UP-V22.5-JU25
Angle:25°
Dimension:Ф22.5
Material:optical PMMA
HOLDER:ABS OR PC (black or white color)
Endure temperature:-40deg C / +80deg C
LED series:lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic:
1 cup used ATR-lens and mirror design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 to 8 mm in diameter, can be directly in the assembly-for-infrared LED on the control condenser;
3 effectively overcome some of the yellow halo LED spot phenomenon facula concentrated, high brightness, and no stray light, no black hole, no shadow or dark areas; Cylindrical lens
4 with stent lens can be assembled in the high-power LED fastening above;
5 products using high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS and environmental protection in line with ROHS requirements
Application:
Widely used in infrared surveillance, LED flashlight, projection lights, underwater lights, courtyard shadow-view lights, stage effects such as lights
