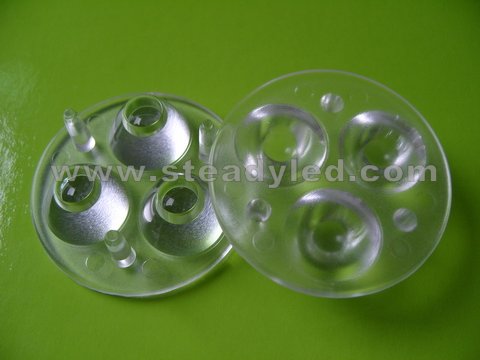

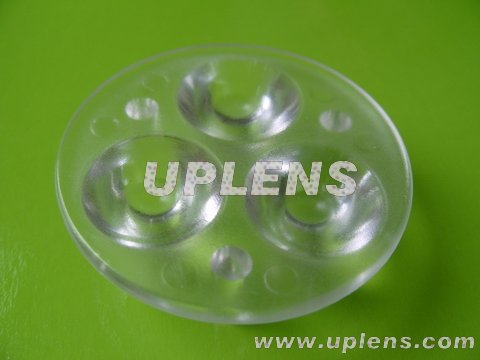

UP-3W50-MT30
Angle:30°
Dimension:Ф50
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED series:Special for CREE
Characteristic:
1 More than one injection to complete the lens through a whole (LED lens module), or the 4-in-1 triple;
2 Cup used ATR-lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration);
3 3 LED light through three LED spot after the condenser lens module can be completely overlap with a significant increase in beam intensity;
4 Developed specifically for CREE, CREE LED with high brightness characteristics significantly improve brightness of the lamps super-irradiation;
5 products using high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS and environmental protection in line with ROHS requirements.
Application:
Widely used searchlights, such as canister lighting etc.
