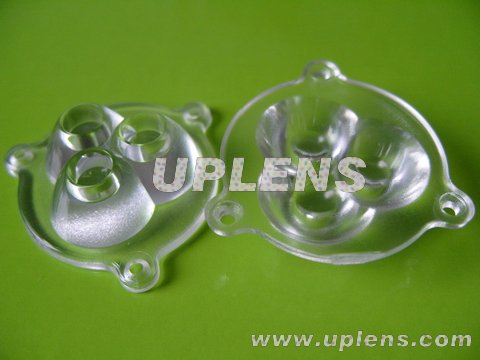

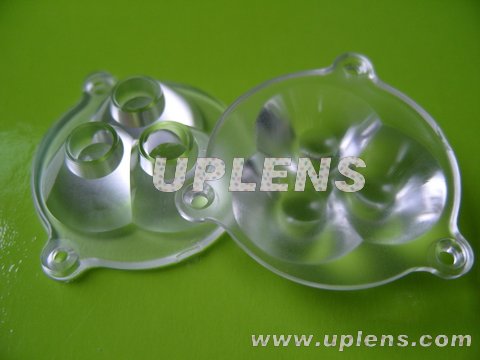

UP-3W34-MT38
Angle:38°
Dimension:Ф34
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED series:lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic:
1 More than one injection to complete the lens through a whole (LED lens module);
2 Cup used ATR-lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration;
3 LED light through three LED spot after the condenser lens module can be completely overlap with a significant increase in beam intensity;
4 designed as a three-hole screwdriver can be used screwdriver from the front lights Cup lock, the three LED center distance of more recent, effectively saving lamps internal space;
5 products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS and environmental protection in line with RoHS requirements.
Application:
Widely used lights Cup Series (MR16, GU10, E27), canister lighting, etc.
