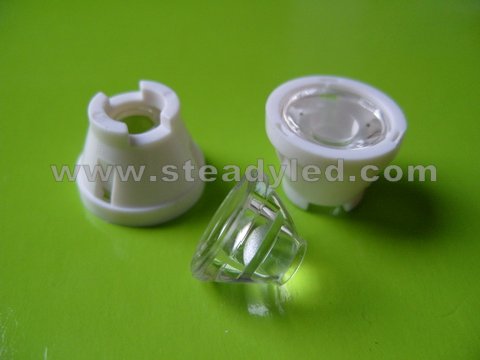

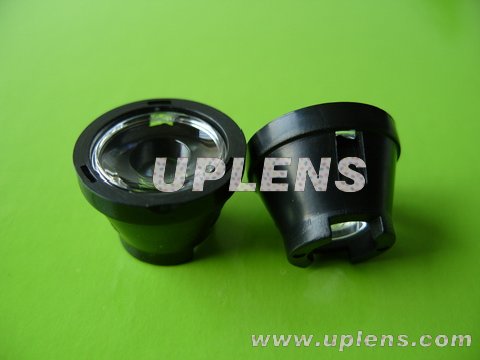

| 製品名： Ф14.5mm cup lens | |
| UP-V14.5H-RU15 Angle：15° Dimension：Ф14.5 Material：optical PMMA |
|
|
|
UP-V14.5H-RU15
Angle：15°
Dimension：Ф14.5
Material：optical PMMA
Endure temperature：-40deg C / +80deg C
LED series：lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic：
1 The type particularly small lens and lighting design requirements, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration);
2 The type lens features the largest diameter is small, small size (thickness of thin Centre) but the messenger glorifies penetration rate being advanced further , the facula concentrates utilization ratio and transmitting rate height , glorifies very homogeneously;
3 Lens holder used Cup design, the structure of space-saving lamps, LED facilitate the aluminum plate alignment or welding and the LED lens at the bottom of the firm closely connected, high-power LED lamps can be more compact design;
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS..
Application：
Particularly suitable for small lamps such as LED flashlight, projection lamps, wall lights washing, miner's lamp, headlights, etc.
