| 製品名： UP-V23-MT30 | |
| UP-V23-MT30 Angle：30° Dimension：Ф23 Material：optical PMMA |
|
|
|

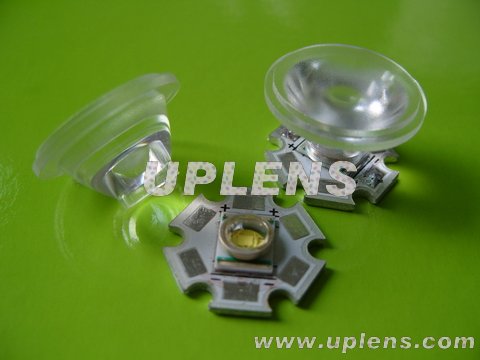

UP-V23-MT30
Angle：30°
Dimension：Ф23
Material：optical PMMA
Endure temperature：-40deg C / +80deg C
LED series:Special for CREE
Characteristic：
1 The type especially against CREE LED lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 Facula very uniform, no stray light, no black hole, no shadows or dark, light transmittance and high rate of utilization.

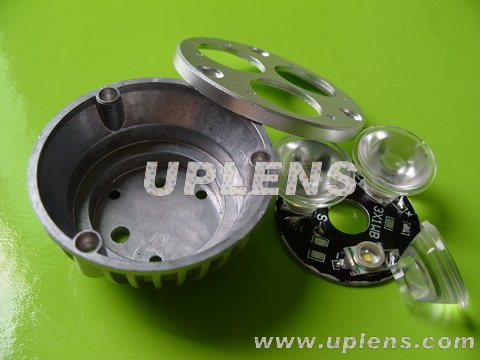

3 Lens will be without holder can be directly firmly fixed on the CREE LED
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS
Application：
Widely used lights Cup (PAR30, PAR38), the projection lamps, washing wall lights, decorative landscape lights, desk lamps, bedside lamp, etc.
