| 製品名： V20-ZT45 | |
| UP-V20-ZT45 Angle：45° Dimension：Ф20 Material：optical PMMA |
|
|
|

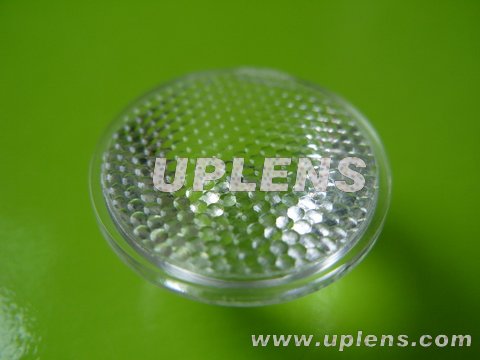

UP-V20-ZT45
Angle：45°
Dimension：Ф20
Material：optical PMMA
HOLDER：ABS OR PC （black or white color）
Endure temperature：-40deg C / +80deg C
LED series：lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic：
1 Using entire reflection cup lens and mirror design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration);
2 Effectively overcome some the dizzy yellow LED facula phenomena, Lighting softnees , the facula uniformity and concentrated, no stray light, no black hole, no shadow or dark areas;
3 Lens equipped with a variety of standard holder used in different fixation.
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS.
Application：
Widely used in LED flashlight, lights Cup (PAR30, PAR38), the projection lamps, washing wall lights, underwater lights, courtyard landscape lamp stage lights etc.
