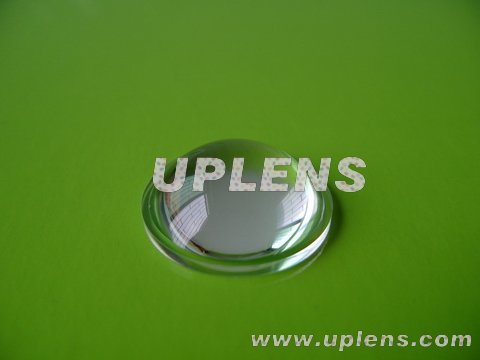

UP-D23H-JU60
Angle:60°
Dimension:Ф23
Material:optical PMMA
HOLDER:ABS OR PC (black or white color)
Endure temperature:-40deg C / +80deg C
LED Seriers:lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic:
1 The type especially for a wide-angle lens and the condenser design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 And the lens can be adjusted by the distance between the LED and the real need condenser angle (45-80 degrees)
3 Can be established with all kinds of high-power LED, the spot is very uniform, no stray light, no black hole, no shadows or dark, light transmittance and high rate of utilization for large-angle focus of the lighting
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS
Application:
Suitable for a wide-angle focus of the lighting, lamps, street lighting and a close.
