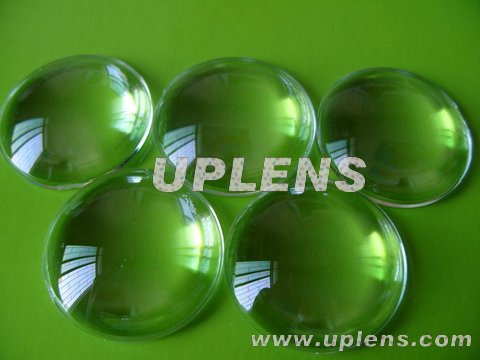

UP-D38-JU60
Angle:60°
Dimension:Ф38
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED Seriers:lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic:
1 the type of lens especially for a wide-angle lens and the condenser design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration);
2 The type of new product using lens surface with a special hardening process, which can effectively prevent the general scratches, and dust can be used rags to clean the surface, are very suitable for lens protruding in the design of external lighting;
3 To adjust the lens and the distance between the LED and the real need condenser angle (45-80 degrees);
4 Can be established with all kinds of high-power LED, the spot is very uniform, no stray light, no black hole, no shadows or dark, light transmittance and high rate of utilization for large-angle focus of the lighting;
5 lens:clear surface and frosting surface, frosting surface makes more soft light, not glare, a number of LED lamps effectively overcome the composition of the light ghosting; 6 products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS and environmental protection in line with RoHS requirements.
Application:
Suitable for a wide-angle focus of the lighting, lamps, street lighting, as well as proximity;
