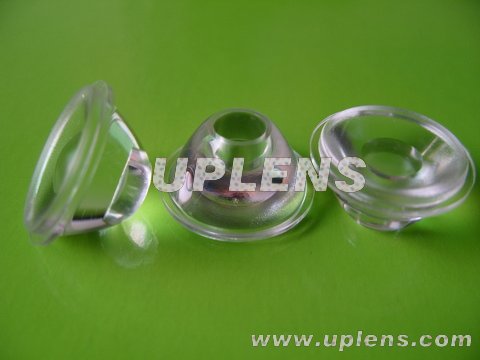

| 製品名： V20 lens MU15 | |
| UP-V20H-MU15 Angle：15° 25° Dimension：Ф20 Material：optical PMMA |
|
|
|
UP-V20H-MU15
Angle：15° 25°
Dimension：Ф20
Material：optical PMMA

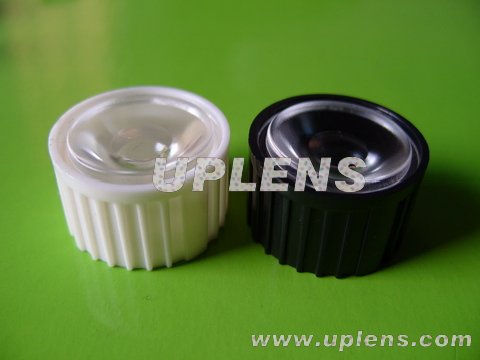

HOLDER：ABS OR PC （black or white color）
Endure temperature：-40deg C / +80deg C
LED series：lumileds、Z-power、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic：
1 Using entire reflection cup-lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 Lens surface is concave and ring part matte processing, and without loss of the facula illumination of the central area, so that the external facula uniformity and the proliferation of vignetting;
3 Effectively overcome some the dizzy yellow LED facula phenomena, Lighting softnees and facula uniformity.
4 Lens equipped with a variety of standard holder used in different fixation;
5 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS.
Application：
Widely used lights Cup (PAR30, PAR38), the projection lamps, washing wall lights, underwater lights, courtyard landscape lamp, stage lights etc.
