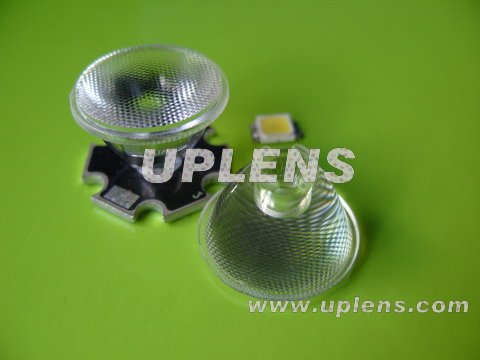

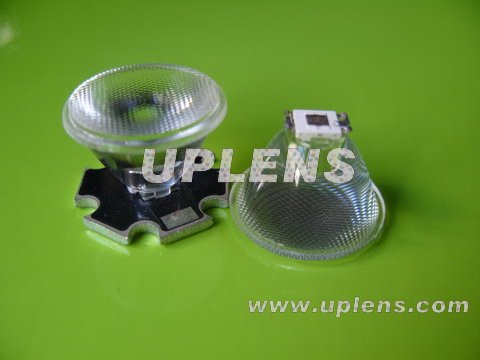

UP-V20N4-JT30
Angle:30°
Dimension:Ф20
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED series:CREE XML OR other 5050 series
Characteristic:
1 There are four foot at the bottom of a plastic column, which can be extended into series 5050 and nichia to positioning and fixing.
2 Using entire reflection Cup lens design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration);
3.Lens surface of a matrix, changing light show direct and diffuse type, lighting softnees and not dazzling lighting, RGB color-mixing more beautiful and true;
4 . Effectively overcome some the dizzy yellow white light LED facula phenomena;
5The three LED module lens distance closer to the center, lens maximum diameter of 20 mm ,height is 12mm,and that effective space-saving lamps do more compact lamps;also using any LED brand you like.
6. The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS.
Application:
Widely used projection lamp,led cup lamp,ceiling light,Par lights, indoor lighting...etc.
