UP-LX65135
Angle:65 * 135°
Dimension:17*9mm
Material:optical PMMA
Endure temperature:-40deg C / +80deg C
LED series::CREE XP OR“3535”
Characteristic:
1 lens is aspherical optical design, it issued by the LED light condensing effect can reach above 90%; ( 3mm thickness at 93% penetration )

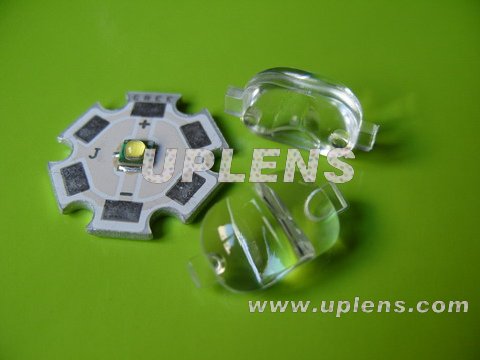

2 lens designs for large power LED lamp ,angle is 65 * 135°, facula is uniformity, it is designed for CREE XP, it can also be applied to 3535 LED;

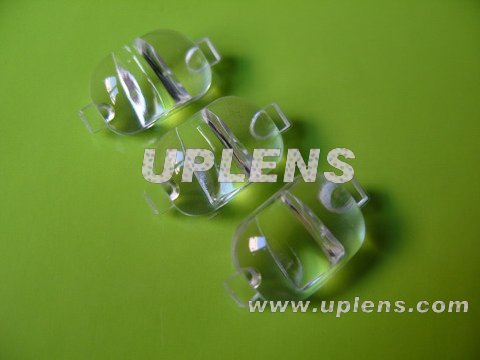

3 lens is embedded in and bonded , there are two at the bottom of a plastic column, which can be extended into PCB positioning and fixing, the bottom can also be fixed lens by glue.
4 Lens ends is design with two protruding block, it is for lighting to provide fixed position;
5 in the same lens based on ontology, and then there is a bounding edge, it is beautiful and it can be matched with the lamp of waterproof structure;
6The lens uses high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all lenses are certified by SGS environmental requirements and comply with RoHS.
Application:
Widely used in high-power LED street lamps, tunnel lights.
