| Name:V20-LT2060 lens | |
| UP-V20-LT2060
Angle：20 * 60° Dimension：Ф20 Material：optical PMMA ? ?? ?? ?? ?? ? |
|
|
|

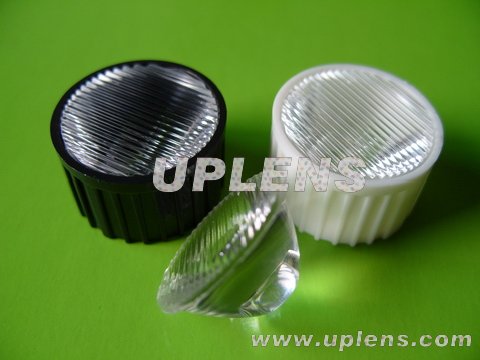

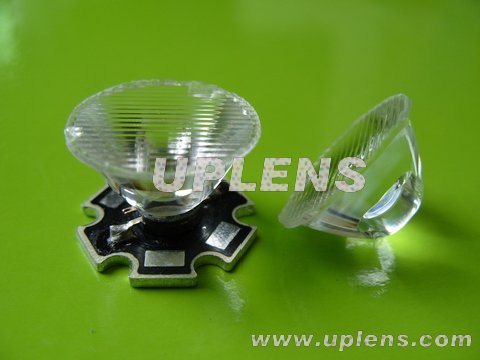

UP-V20-LT2060
Angle：20 * 60°
Dimension：Ф20
Material：LENS：optical grade PMMA
HOLDER：ABS OR PC （black or white color）
Endure temperature：-40deg C / +80deg C
LED series：lumileds、Z-power、CREE、Edison、helio、everlight、prolight、harvatek、nichia …
Characteristic：
1 Special oval facula for the design, issued by the LED light condenser results can be achieved more than 90% (3 mm thickness at 93% penetration)
2 Lighting softnees and not dazzling, Spot uniformity and proliferation, without a shadow of dark areas.
3 Lens equipped with a variety of standard holder used in different fixation
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS.
Application：
Widely used in road lighting, tunnel lights, stage effects such as lights
Pre Product：LT50120 lens
Next Product：Ф29mm lens
