| Name:UP-V23-MT30 | |
| UP-V23-MT30
Angle：30° Dimension：Ф23 Material：optical PMMA |
|
|
|

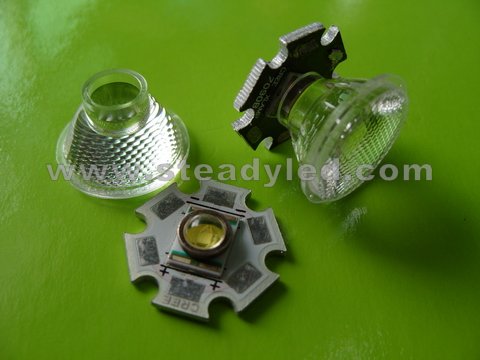

UP-V23-MT30
Angle：30°
Dimension：Ф23
Material：LENS：optical grade PMMA
HOLDER：ABS OR PC （black or white color）
Endure temperature：-40deg C / +80deg
LED series：Special forCREE
Characteristic:
1 The type especially against CREE LED lens design, issued by the LED light condenser esults can be achieved more than 90% (3 mm thickness at 93% penetration);
2 The surface adopt an optical lens to shine upon lines treatment,it condenser and the soft facula does not produce dizziness, particularly mixed-RGB more beautiful;；
3 Lens holder used Cup design, the structure of space-saving lamps, LED facilitate the aluminum plate alignment or welding, and the LED lens at the bottom of the firm closely link；
4 The products use high-precision aspheric optical design and use of Japan's Mitsubishi original PMMA optics imports of raw materials to ensure adequate time for injection molding (reducing shrinkage products), anti-static products using PVC packaging, all products are certified by SGS environmental requirements and comply with RoHS。
Application：
Widely used in projection lamps, washing wall lights, decorative landscape lights, desk lamps, bedside lamp, etc.
Pre Product：Ф20mm lens MU15
Next Product：V22.5-JU25
